MTP/MPO HARNESS MICRO CABLE ASSEMBLIES

MTP/MPO Harness Micro Cable Assemblies meet the demands of 10G/25G Ethernet, higher speed 40G/100G ethernet, and can be used for standards-compliant cable plant migration from 10G/25G to 40G/100G. The MTP/MPO Harness Micro Cable Assemblies are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.


  • • Bend-insensitive/bend optimized fibers

    • SM and MM performance types

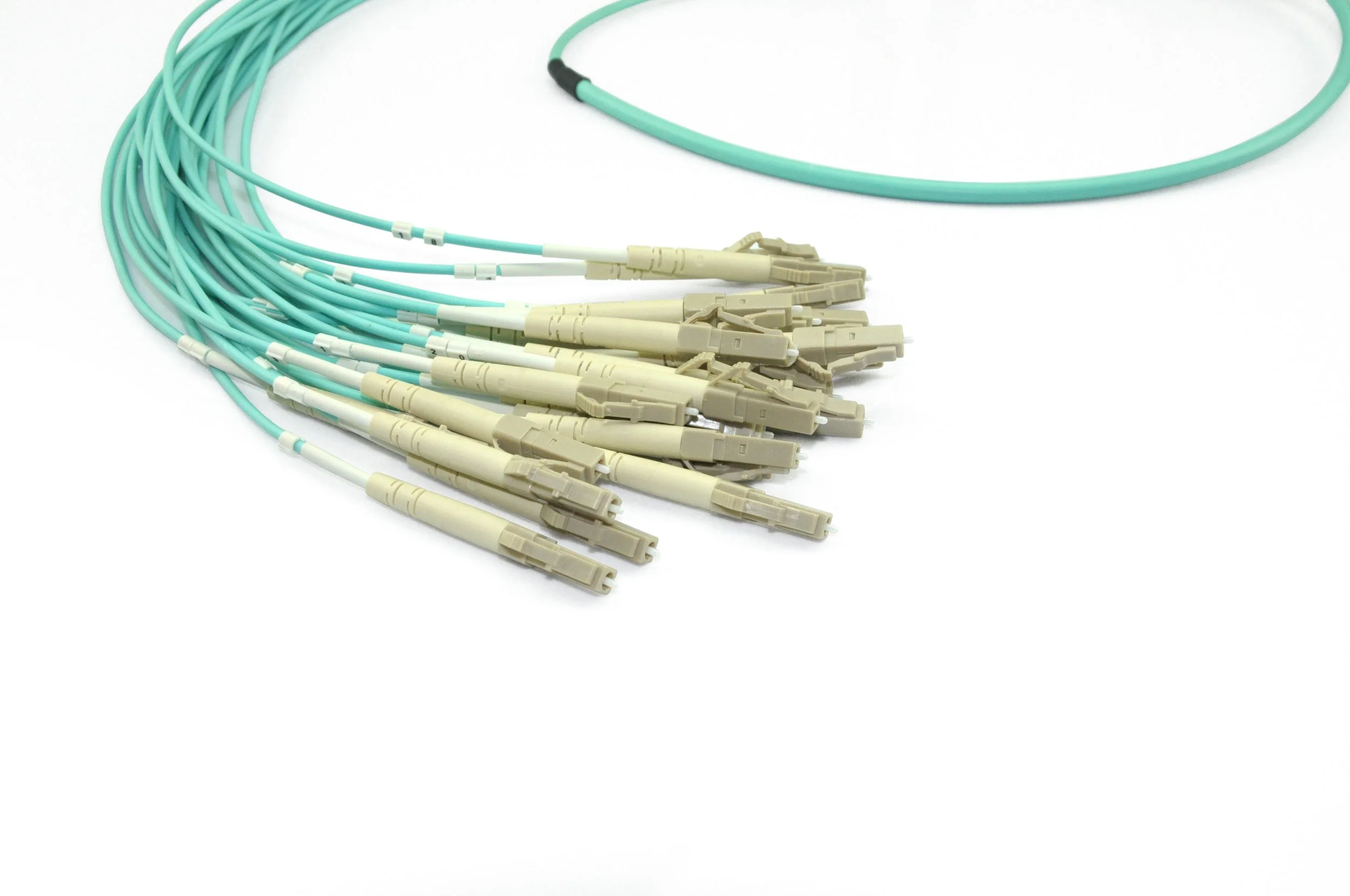

    • MTP/ MPO on one end, with standard connectors on another end

    • MTP/ MPO in 8/12/24 fiber optional

    • Connector interface available in LC, SC, ST, FC, uniboot LC

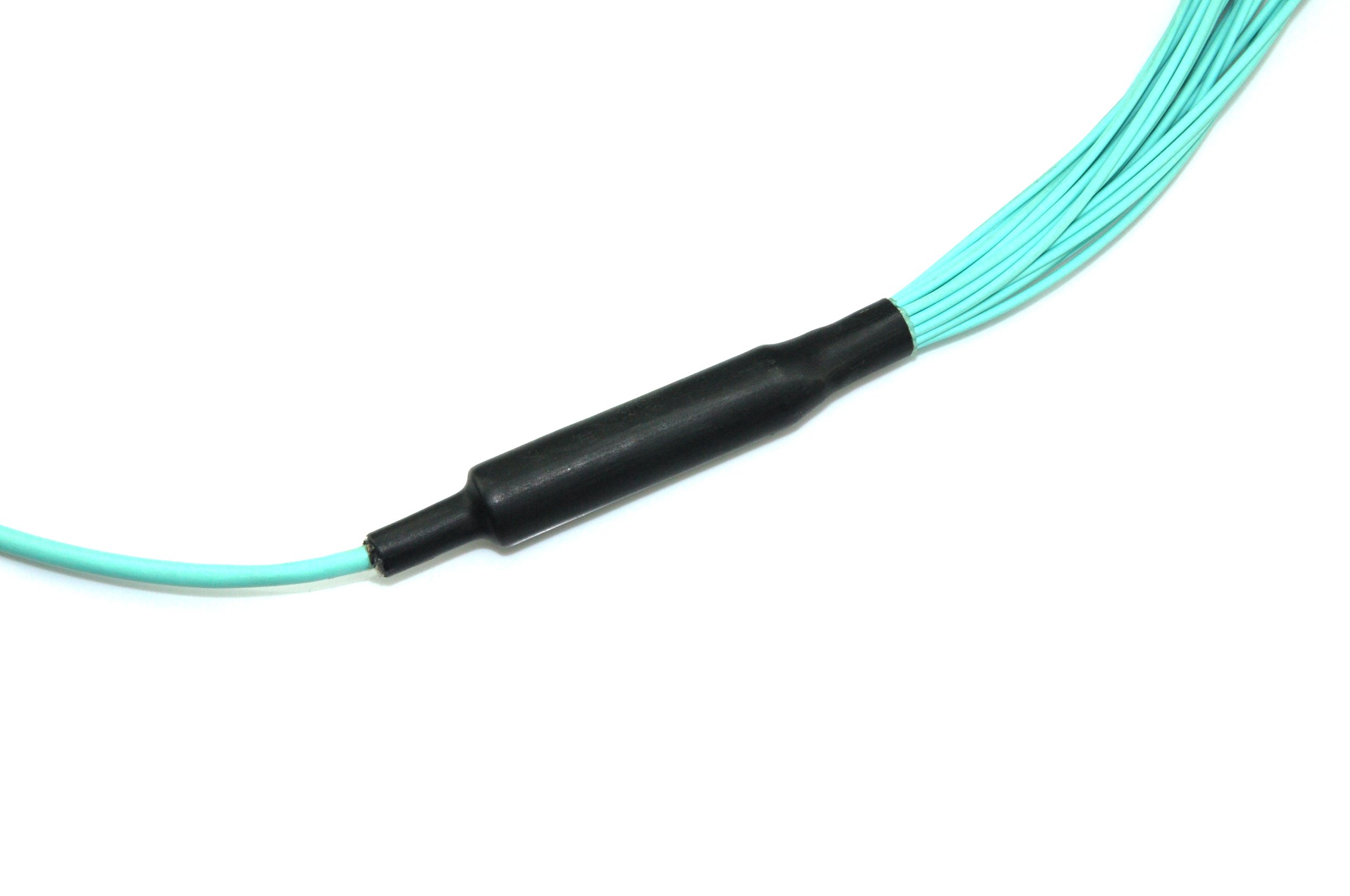

    • Customized furcation length to cater for different installa-tion situations

    • Round or square sub-branch 0.9/2.0/3.0mm


  • MTP/MPO CONNECTOR: Value:     -, 8F: 12, 12F: 12, 24F: 24

    OUTER SHEATH THICKNESS: Value: mm, 8F: 0.8, 12F: 0.8, 24F: 0.8

    CABLE OUTER DIAMETER: Value: mm, 8F: 3.0mm ±0.2, 12F: 3.0mm ±0.2, 24F: 4.6mm ±0.2

    MIN BENDING RADIUS DYNAMIC: Value: mm, 8F: 15D, 12F: 15D, 24F: 15D

    MIN BENDING RADIUS STATIC: Value: mm, 8F: 30D, 12F: 30D, 24F: 30D

    CABLE JACKET COLOR: YELLOW, ORANGE, AQUA, VIOLET AND OME COLORS

    BRANCH OF CONNECTOR:     LC, SC, ST, FC, UNIBOOT LC

  • FIBER MODE: OS1/OS2/G657-9/125 BEND INSENSITIVE(A.1 OR A.2) OR OM1/2/3/4/5

    TEST WAVELENGTH: 1310NM/1550NM (SINGLEMODE), 850NM/1300NM (MULTIMODE)

    MPO/MTP INSERTION LOSS (LOW): SINGLEMODE ≤0.35DB, MULTIMODE ≤ 0.35DB

    MPO/MTP INSERTION LOSS (STANDARD): SINGLEMODE≤0.50DB, MULTIMODE≤0.50DB

    MPO/MTP RETURN LOSS: SINGLEMODE UPC≥50DB APC≥60DB, MULTIMODE UPC≥25DB

    BRANCH INSERTION LOSS (LOW): SINGLEMODE≤0.15DB, MULTIMODE≤0.15DB

    BRANCH INSERTION LOSS (STANDARD): SINGLEMODE≤0.30DB, MULTIMODE≤0.30DB

    BRANCH RETURN LOSS: SINGLEMODE UPC≥55DB APC≥65DB, MULTIMODE UPC≥25DB
