1X2 FBT WDM DEVICE

1×2 FBT WDM device is based on the fused biconical taper technology, which can make
two optical fiber’s become fused biconical taper under high temperature, then after
packaging, it can add or drop the different optical wavelength signal.

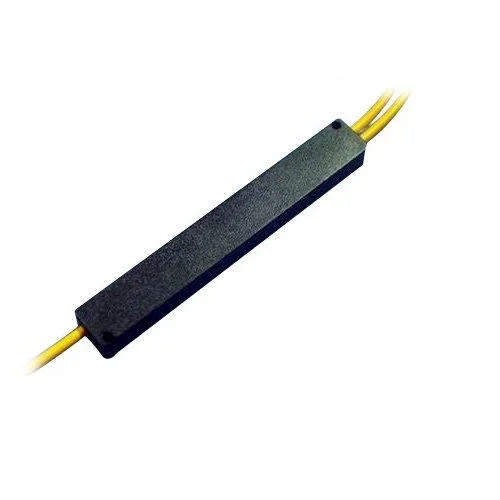

inner product pictures-1.JPG

  • • High Channel Isolation, low Insertion Loss

    • High Stability and reliability

    • Material meet RoHS

    • Meet GR 1209,GR 1221 requirement

  • PASSBAND WAVELENGTH RANGE(NM): MIN, TYPICAL, MAX 1295~1325

    REFLECTION WAVELENGTH RANGE(NM): MIN, TYPICAL, MAX 1535~1565

    INSERTION LOSS(DB): MIN 0, TYPICAL 0, MAX 0.3

    ISOLATION(DB): MIN 17, TYPICAL 0, MAX 0

    DIRECTIVITY(DB): MIN 55, TYPICAL 0, MAX 0

    RETURN LOSS(DB): MIN 55, TYPICAL 0, MAX 0

    POLARIZATION DEPENDENT LOSS (DB): MIN 0, TYPICAL 0, MAX 0.1

    POLARIZATION MODE DISPERSION(PS): MIN 0, TYPICAL 0, MAX 0.1

    OPERATING TEMPERATURE RANGE (℃): MIN, TYPICAL, MAX -5~+70

    STORAGE TEMPERATURE RANGE RANGE(℃): MIN, TYPICAL, MAX -40~85

    OPTICAL FIBER TYPE: Corning SMF 28e+ or equal customized)

    OPTICAL FIBER LENGTH(M): ≥1.0(customized)

    PACKAGE DIMENSION (MM): ABS Box Box：90x20x10 or 100×80×10

  • • CATV Systems

    • Network Monitoring

    • Test Equipment

    • Telecommunications
